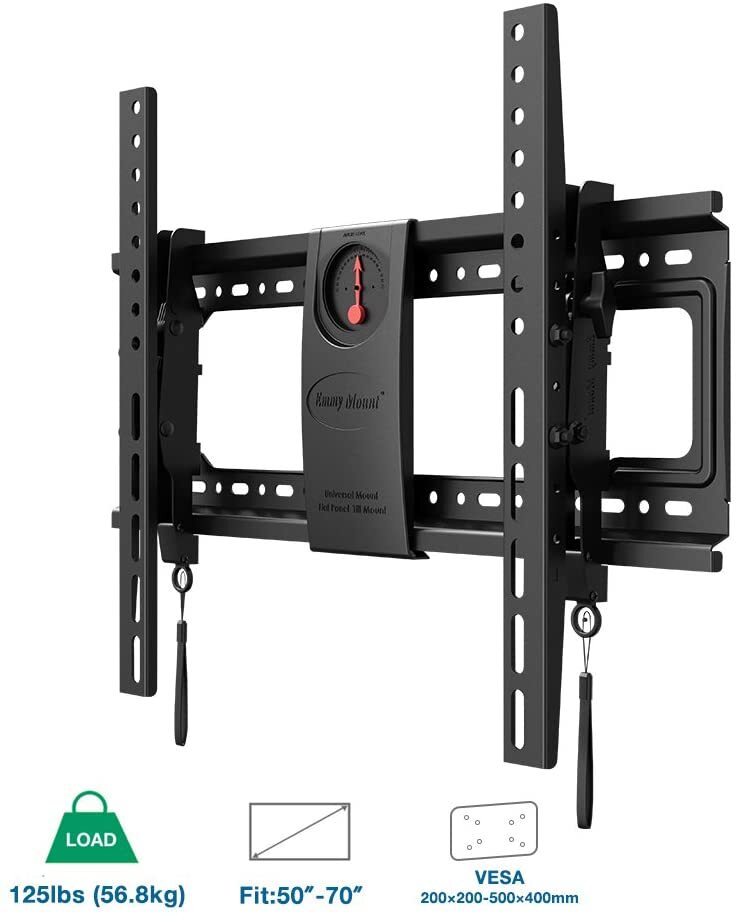

Model: C70-T
Fits: Most 50"-70" flat panel LED/LCD TVs.

Our C70-T mount is a popular design for consumers wishing to easily install their TV at home by themselves. With a sleek, high-quality powder coated finish, this unit allows for quick installation of an LCD/LED display onto the wall plate. The screen can also be adjusted within the wall plate freely to find an optimal horizontal viewing angle.
This unique tilting wall mount design improves on those in the market that are difficult to adjust. The C70-T allows for the screen to be tilted by gear joint interaction, meaning you only need to tighten the adjustment handle lightly to fix the tilt angle securely.
A unique auto-lock and unlock design allows a single person to install and disassemble their TV very easily. Simply hold the adaptors and hook onto the wall plate until it clicks on. Adaptors will engage and lock the screen onto the wall plate automatically. To remove your TV, simply pull the adaptor straps downward to disengage clips and hold it up. That’s it, no hand tools required so use is safe, easy and convenient.
Fitted with this patented tilt system, screens can be easily adjusted so that just a gentle touch can change the viewing angle without any tools.

Features:

  • Tilt function of the newest design, which allows for tilting by a gear joint interaction.
  • A single person could install or dismount their TV easily.
  • Screens can be easily adjusted so that just a gentle touch can change the viewing angle without any tools.​

Specifications:

                Flat panel tilting mount for large size screens
             ■ Fits most 50" - 70" flat panel displays
             ■ VESA compliance : 200 x 200, 400 x 400, Maximum 600 x 400mm
             ■ Tilt: -5°~ +15°
             ■ Load capacity :
68.2kg - (150lbs)
             ■ Material : Steel - Powder Coated
             ■ Surface treatment: Powder painting coating finished.
             ■ Colour: Black

Please Note: Screen shown in images is for reference only and is not included with the product.
SKU C70-T
Barcode # 6943223108778
Brand North Bayou
Shipping Weight 3.5500kg
Shipping Width 0.230m
Shipping Height 0.080m
Shipping Length 0.640m
Shipping Cubic 0.011776000m3
